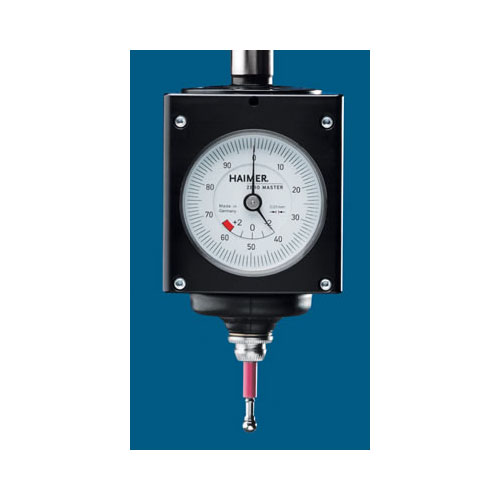

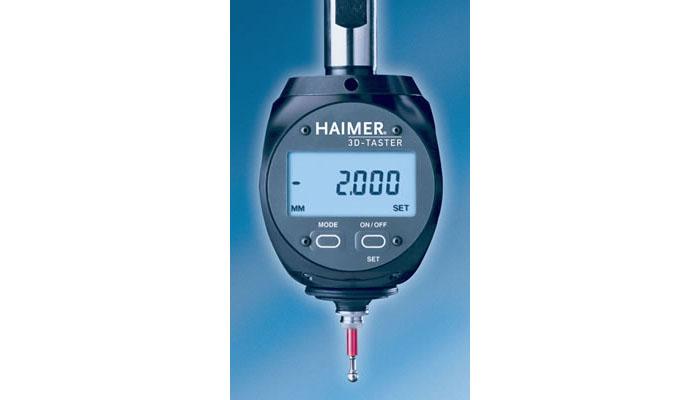

Đồng Hồ So 3D HAIMER.

Đồng Hồ So 3D HAIMER.

Mã số sản phẩm: CDHAIMER-001

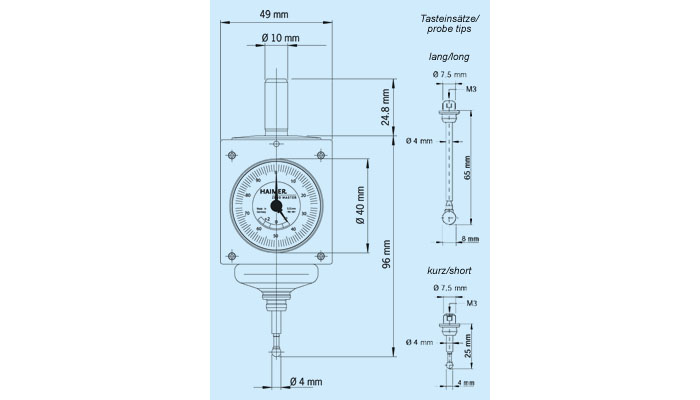

Technical details

Shank
Ø 10 mm
Accuracy
0,01 mm
Lenght without clamping shank
96 mm
Short probe tip
Ø 4 mm
Long probe tip
Ø 8 mm

Technical details

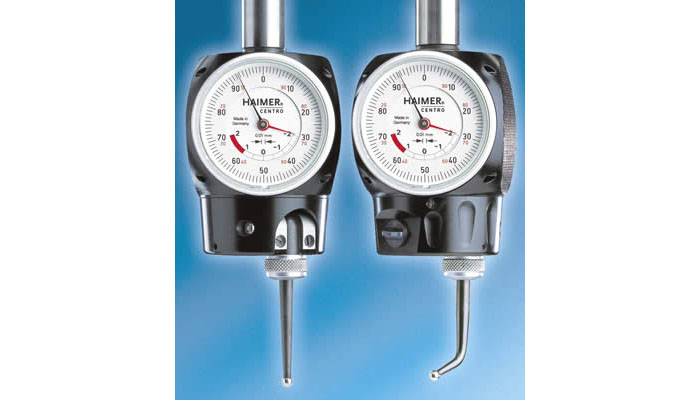

Centro with straight probe tip



Probe tip
Ø 5 mm
Clamping shank
Ø 16 mm
Centering accuracy
0,003 mm
Max. rotation speed
150 1/min
Measuring range interior diameter (drill hole)
Ø 3-125 mm
Measuring range exterior diameter (shaft, with probe tip bent)
Ø 0-125 mm




Probe tip straight with ball
Ø 5 mm
Probe tip bent with ball
Ø 5 mm
Probe tip straight with ball
Ø 2 mm, for small bores
